Diesel Air Heater12v/24v-2kw

Product Specifications：

Rated voltage：12V/24V/12V-24V Rated current:16A

Thermal power：2KW Fuel：Diesel

Fuel tank capacity：10L/9L/Other Capacities/Optional without fuel tank

Oli consumption：0.16-0.48L/H Pump oil volume：0.016-0.022ml/T

Motor power：20-40W Motor speed：1800-4300r/m

Remote control distance：10-20m Host size：33*11.5*13.5cm

Package size：46*45*28cm

（The packaging size may vary depending on the fuel tank capacity）

Package weight：4.9-6.2kg

（The weight will vary depending on the accessories chosen）

Ambient temperature：-35℃-30℃

High temperature protection：180℃-220℃

Applicable altitude：<3000m

High altitude version：3000-5000m

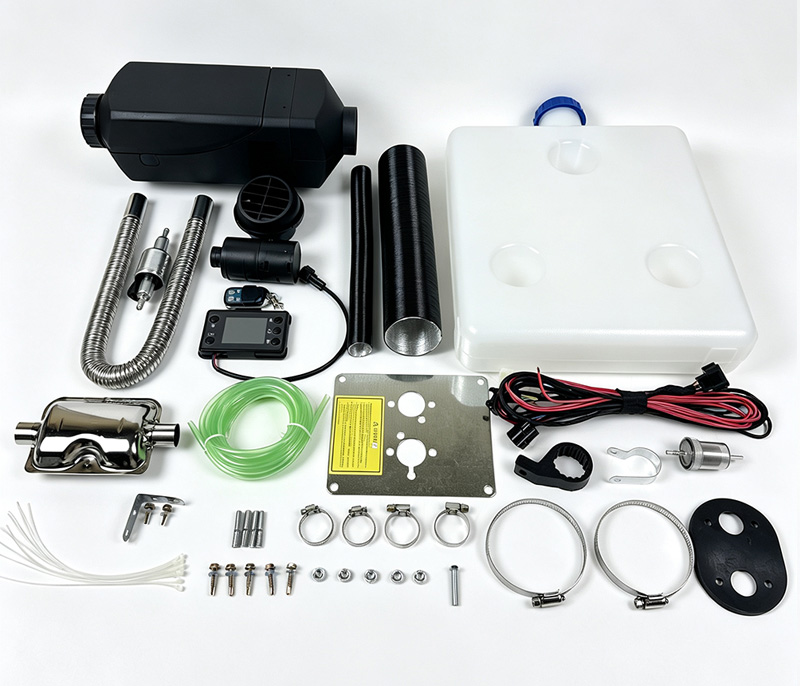

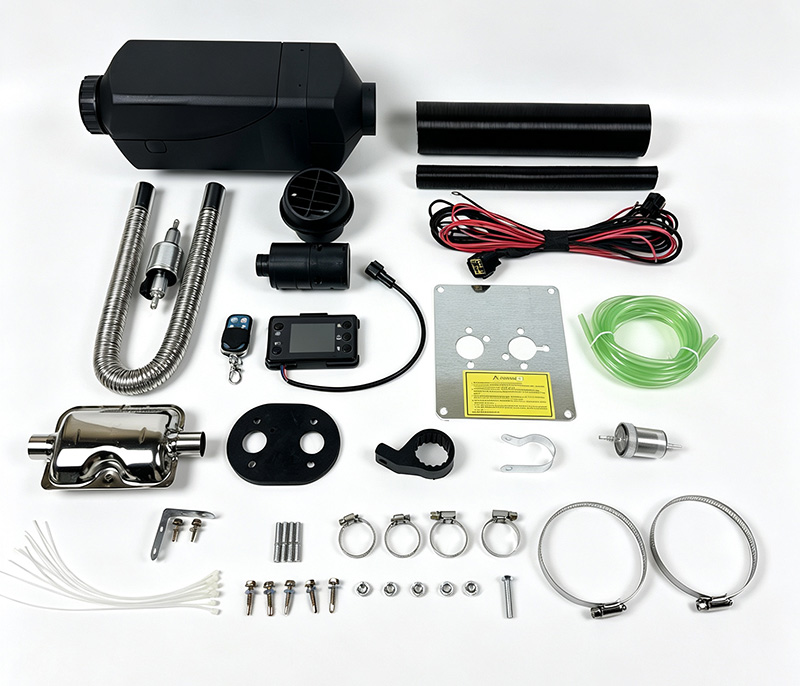

Packing list：

Host*1，LCD+remote control*1，Hot air outlet pipe*1，

Hot air vent net*1，Intake pipe*，Air filter*1，Exhaust pipe*1，Silencer*1

Oil tank*1，Oil filter*1，Oil pump*1，Oil pump fixing sleeve*1

Oil tube*1，Rubber tube*1（If green tubing is chosen,there will be no black hose）

Rubber pad*1，Fixed plate*1，Hose clamp-75#*2，Hose clamp-25#*4

Clip*2，Screw*5，Lead screw*1，Flange nut*5，Ribbon*10，

Use manual*1，LCD usage introduction*1）

The quantity of the above accessories can be adjusted according to actual needs.

Reference for the number of loading containers:

20GP(‌5.89*2.34*2.38m):510-680ctn.

40GP(12.029*2.352*2.392m):1040-1430ctn.

40HQ/HC(12.032*2.352*2.698m):1170-1560ctn.

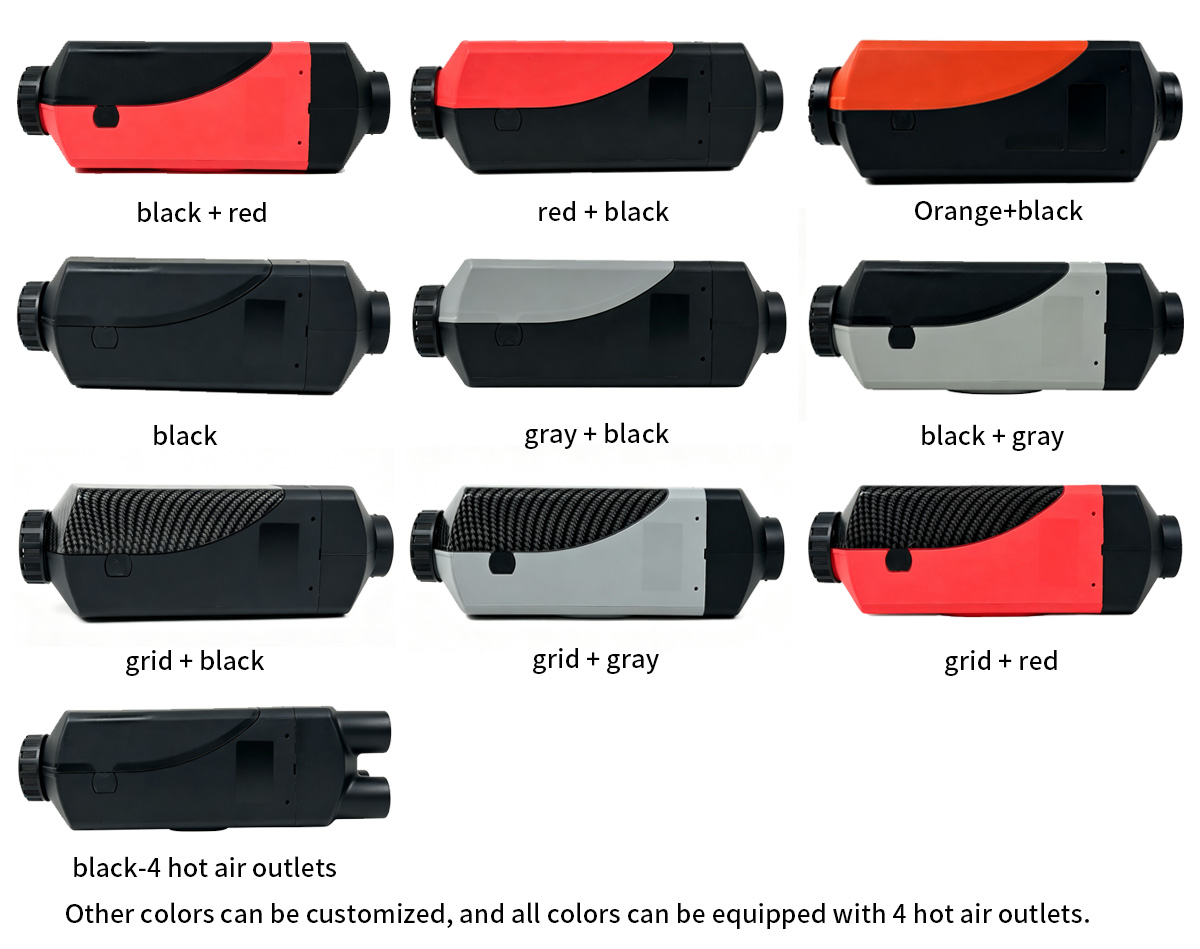

Reference picture:
