Diesel Air Heater1KW
Core Functions
Independent Diesel Heating
Run independently with diesel fuel,no need to start vehicle engine or connect city power.
Intelligent Constant Temperature Control
Digital LCD panel+wireless remote control,stepless temperature adjustment,auto keep target temperature,Bluetooth APP function.
Multi-layer Safety Protection
Overheat protection,flameout protection,low-voltage protection,blockage protection to avoid faults.
Low-power Stable Circulation
Automatic switch between high/low power to save fuel after reaching set temperature.
Multi-voltage Compatibility
12V&24V optional,match cars,trucks,engineering vehicles and RV electrical systems.
Complete Air Supply Design
Single outlet/four outlets optional,evenly deliver warm air to all corners of space.
Product Features
Low Fuel & Power Consumption
Fuel consumption only 0.1–0.6L per hour, tiny battery power loss, low operating cost.
Ultra-low Noise Design
Silent fuel pump, dual exhaust silencer and shock-absorbing brackets, running noise ≤45dB, suitable for overnight sleep.
Fast Heating Speed
Quickly heat up within 5–10 minutes, fast defrost car windshield in cold winter.
Optional Shell Material
All stainless steel housing (corrosion-resistant for marine/coastal) or lightweight plastic housing for private cars.
Complete Supporting Accessories
Full installation kit including fuel tank, exhaust pipe, air duct, clamps and wiring harness, easy one-step installation.
Customizable Support
Support OEM, ODM, LOGO, power and appearance customization for global clients.
Extreme Cold Resistance
Stable work under -40℃ harsh low temperature, adapt all kinds of global climate.
Application Scenarios
All Kinds of Vehicles
Sedans,hatchbacks,pickup trucks,heavy-duty trucks,light vans,RVs,campers,boats,yachts,engineering vehicles,agricultural machinery,off-road vehicles,mining vehicles,electric vehicles.
Outdoor Camping&Temporary Space
Camping tents,travel caravans,temporary construction tents,mobile work sheds,outdoor booths.
Small Fixed Space Heating
Small warehouses,storage rooms,temporary offices,container houses,small workshops.
| Product Specifications | 1KW | 2KW | 5KW | 8KW |
| Rated voltage | DC12V/24V | DC12V/24V | DC12V/24V | DC12V/24V |
| Rated current | 16A | 16A | 16A | 16A |
| Thermal power | 1KW | 2KW | 5KW | 8KW |
| Fuel | Diesel,diesel | diesel | diesel | diesel |
| Fuel tank capacity | 10L/9L | 10L/9L | 10L/9L | 10L/9L |
| Oli consumption | 0.15-0.45L/H | 0.16-0.48L/H | 0.2-0.5L/H | 0.25-0.6L/H |
| Pump oil volume | 0.016ml/T | 0.016-0.022ml/T | 0.022ml/T | 0.028ml/T |
| Motor power | 20-39W | 20-40W | 20-43W | 25-45W |
| Motor speed | 1800-4300r/m | 1800-4500r/m | 2000-4500r/m | 2000-4700r/m |
| Host size | 28*9.5*12cm | 33*11.5*13.5cm | 38*13.5*17.5cm | 40*13.5*17.5cm |
| Host weight | 2kg | 2.85kg | 3.6kg | 4.3kg |
| Package size | 46*45*28cm | 46*45*28cm | 46*45*28cm | 46*45*28cm |
| Package weight | 5.0-5.5kg | 6.0-6.5kg | 6.9-7.4kg | 7.7-8.2kg |
| Ambient temperature | -35℃-30℃ | -35℃-30℃ | -35℃-30℃ | -35℃-30℃ |
| High temperature protection | 200℃-220℃ | 200℃-220℃ | 200℃-220℃ | 200℃-220℃ |
| Applicable altitude | <3500m | <3500m | <3500m | <3500m |
| High altitude version | 3000-5000m | 3000-5000m | 3000-5000m | 3000-5000m |
| Product air outlet: 5KW and 8KW have one air outlet, and there are four air outlets | ||||
| Product air outlet: 5KW and 8KW have one air outlet, and there are four air outlets | ||||

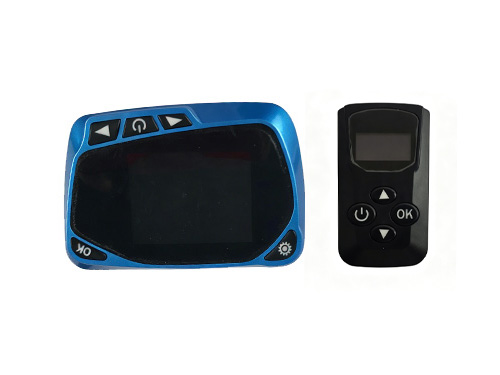

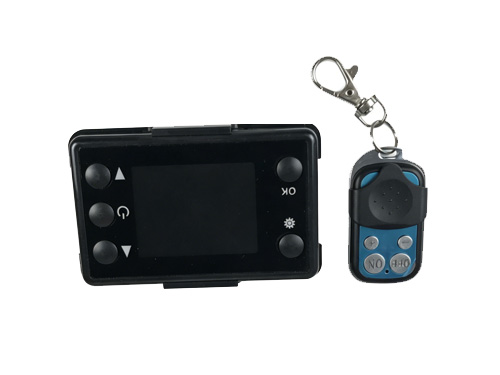

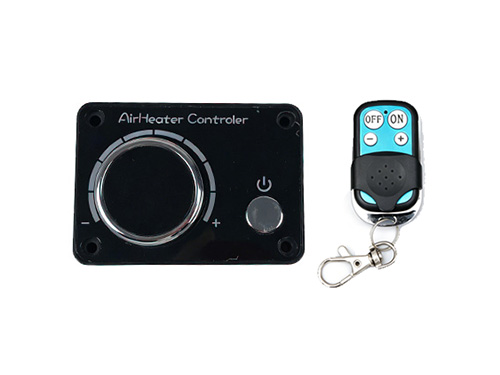

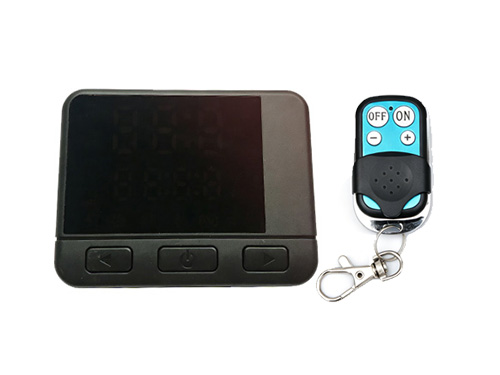

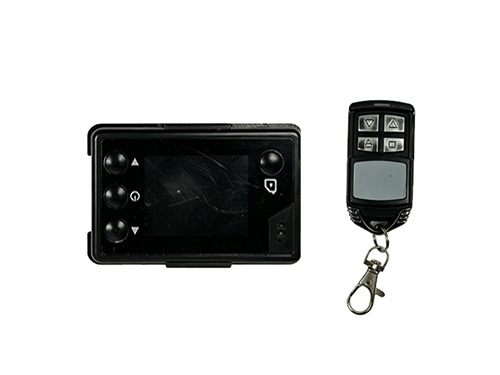

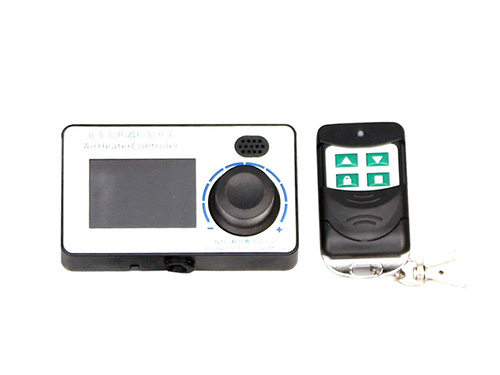

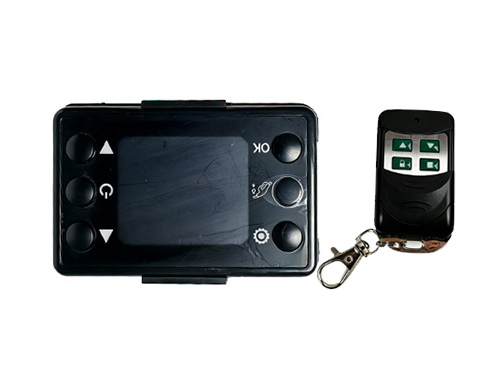

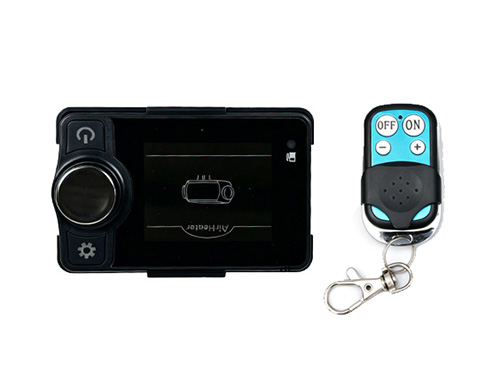

Product switch display diagram

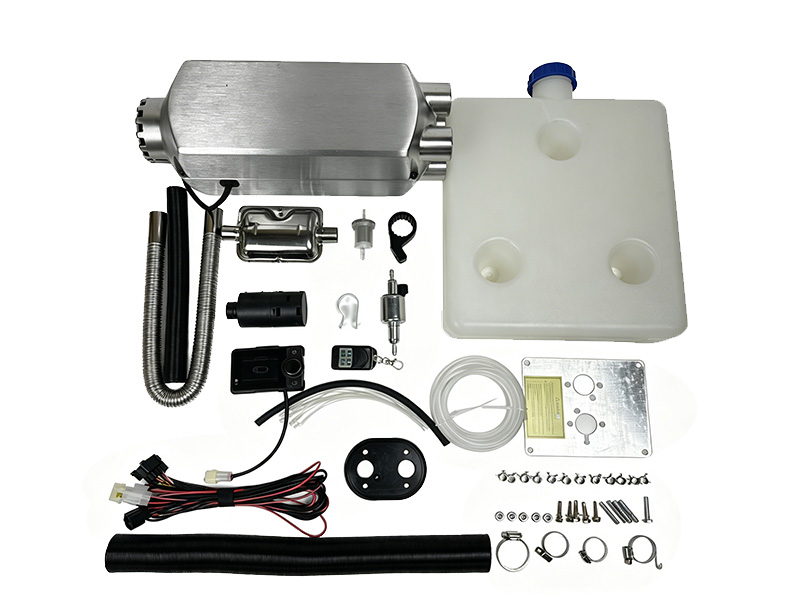

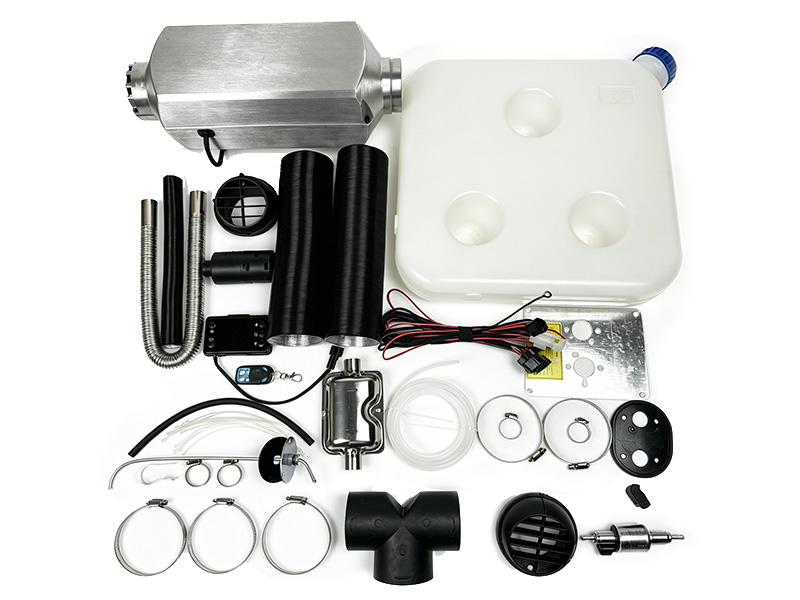

Complete set of product images


Packing list for regular configuration
Host*1,LCD+remote control*1,Hot air outlet pipe *1,Hot air vent net *1,Intake pipe*1, Air filter*1,Exhaust pipe *1,Silencer*1,Oil tank*1,Oil filter*1,Oil pump*1
Oil pump fixing sleeve*1,Oil tube*1 ,Rubber tube*1,Rubber pad*1,Fixed plate*1,Hose clamp-75#*2,Hose clamp-22#*4,Clip*1,Screw*5 ,Lead screw*1, Flange nut*5,Ribbon*10
Use manual*1,LCD usage introduction*1(Explanation: The air outlet duct in the four hole accessory is D42mm-L1m * 2, and other accessories are matched according to the four hole configuration)
Packing List for Oil Dispenser Configuration
Host*1,LCD+remote control*1,Hot air outlet pipe *2,Hot air vent net *2,Intake pipe*1, Air filter*1,Exhaust pipe *1,Silencer*1,T-tee*1, Oil suction pipe*1,Oil tank*1,Oil filter*1,Oil pump*1, Oil pump fixing sleeve*1,Oil tube*1 ,Rubber tube*1,Rubber pad*1,Fixed plate*1,Hose clamp-75#*4,Hose clamp-22#*4,Clip*1,Screw*5 ,Lead screw*1, Flange nut*5,Ribbon*10, Use manual*1,LCD usage introduction*1
